Description

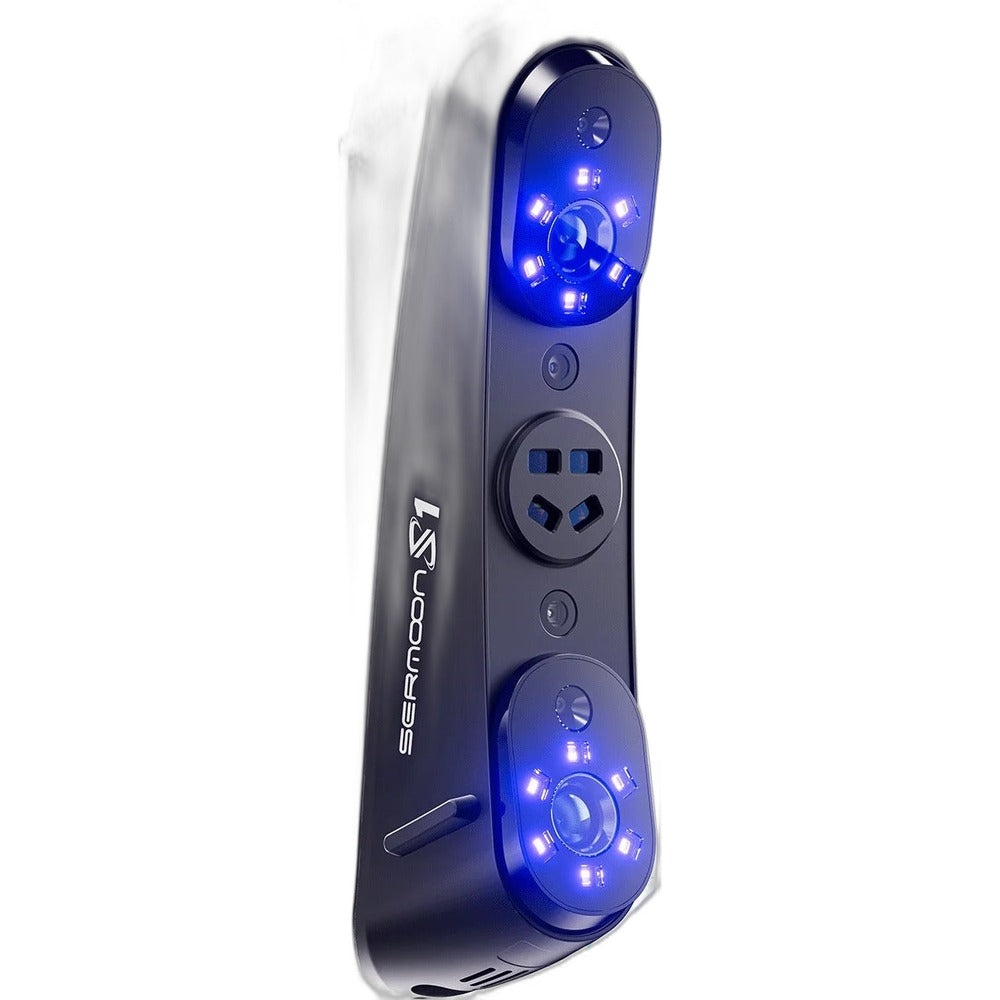

Combining advanced sensor technology with superior ease of use, the Creality Sermoon S1 3D scanner is ideal for professional applications in industry, product design, and reverse engineering. With precise multi-light acquisition, flexible application options, and seamless integration between CAD and 3D printing, this device offers a powerful all-in-one solution for detailed 3D scanning, without compromise.
Multilight Technology for Maximum Flexibility
The combined ONE Plus + 7 + 34 system uses blue laser lines and NIR structured light to enable extremely precise scans in all lighting conditions.
-
Single Laser Line: for precise detection of deep and hard-to-reach areas. Ideal for narrow geometries such as holes with a depth-to-diameter ratio of up to 1:6.
-
34 Intersecting Laser Lines: for comprehensive 3D scans. This configuration efficiently covers larger areas and significantly increases scanning speed, ideal for rapid digitization of complex objects.
-
Seven Parallel Blue Laser Lines: scans complex structures with a high level of detail. Even the most delicate surface features are accurately captured with a maximum resolution of 0.1 mm, ideal for applications requiring high levels of detail accuracy.
-
NIR Structured Light: The NIR (Near-infrared) mode uses structured infrared light to perform fast, marker-free scans. This method is particularly suitable for delicate or difficult-to-mark surfaces.
The combination of blue laser lines and infrared structured light allows for flexible detection of objects of various sizes, from very small (5 mm³) to very large (up to 4000 mm³).
Precise, Efficient, and Fast
With a volumetric accuracy of 0.02 mm + 0.08 mm/m and a scan speed of up to 90 frames per second, the scanner delivers detailed results in the shortest possible time. The wide field of view accelerates the scanning process, especially for large objects.
Innovative 4-Lens Stereo Vision with Extended Detection Range
► Standard Stereo Lenses: enable high-precision 3D scanning of fine structures. Precise depth perception allows for reliable and accurate reconstruction of details.
► Telestereoscopic (Long-Focal) Lenses: offer a particularly wide field of view for fast, marker-free scanning of large objects, including human bodies.
Smart Control and Software Integration
Thanks to wireless operation and AI-optimized software, even complex workflows can be managed effortlessly. Seamless integration into CAD, CAM, and 3D printing processes ensures smooth further processing of scan data.
Continuous Operation? No Problem!
Sermoon S1 is equipped with an AI-based temperature compensation algorithm and an efficient thermal management system, ensuring stable system performance even during prolonged scanning sessions.
Additional Features:
- excellent performance both indoors and outdoors;
- scans black and metallic objects without spray;
- one-shot 3D imaging technology for high tracking stability;
- Creality Scan 4.0 software with intuitive design.
