Il ELEGOO PLA-CF Filamento (Nero) di ELEGOO è un filamento per stampa 3D di alta qualità, ideale per stampanti FDM con diametro 1.75mm. Perfetto per prototipi, oggetti decorativi e applicazioni funzionali.

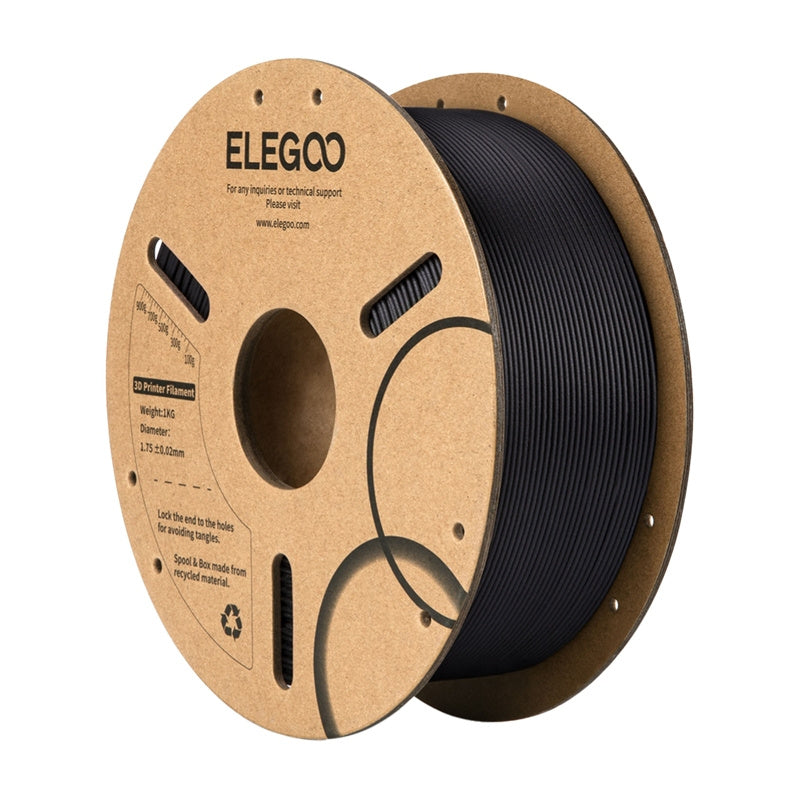

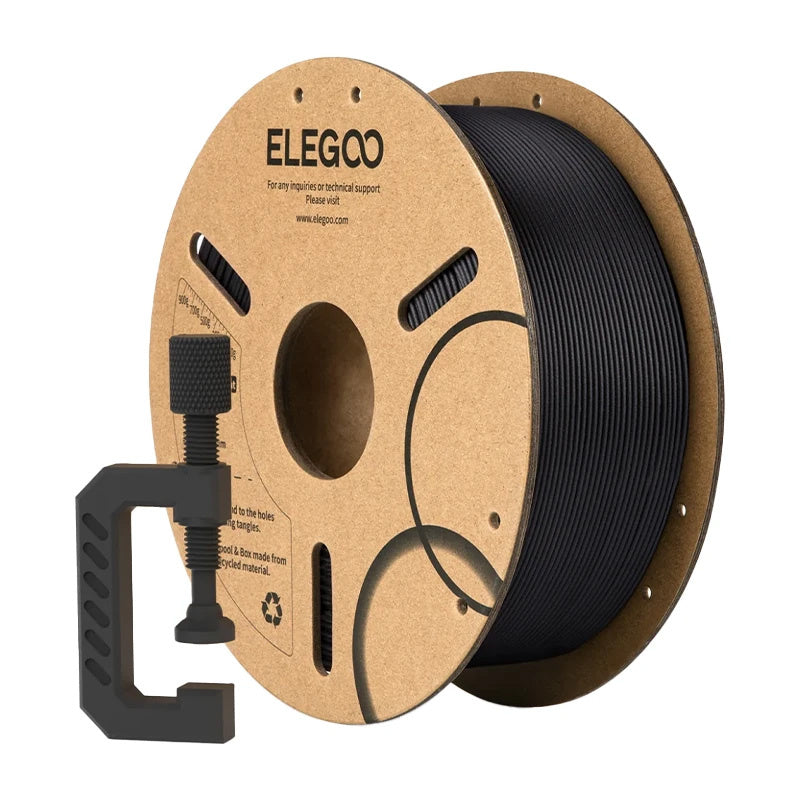

ELEGOO PLA-CF Filamento (black)
ELEGOO PLA-CF (polylactide doped with carbon fiber) filamento combines the ease of printing typical of PLA (polylactide - a plant-derived, biodegradable plastic) with higher mechanical strength. The addition of carbon fiber increases the stiffness of the material and reduces its shrinkage during cooling, resulting in greater dimensional precision. This type of material works well in technical components, housings and prototypes that need to be durable but lightweight.
Accurate and aesthetically pleasing models
The addition of carbon fiber reduces shrinkage and deformation of the material, resulting in precise, well-fitted parts. Printed models have a matte surface and faintly visible layer lines, giving a professional effect without additional processing. The material fits most FDM 3D printers (Fused Deposition Modeling - a technology that applies molten plastic layer by layer).
Printing without problems
The filamento has a diameter of 1.75 mm and a dimensional tolerance of ± 0.02 mm, which facilitates even feeding without jams. It is vacuum-packed with a moisture absorber to protect against bubbles and a clogged ugello. It can be used alone or combined with classic PLA, maintaining alta qualità prints.
General
| Produttore |
ELEGOO |
| Modello |
50.203.0464 |
| Colore |
Nero |
| Peso |
1 kg |
Recommended print settings
| Drying settings before printing |
55 ± 5°C |
| Ambient temperature and humidity |
≤ 50°C, ≤ 20% relative humidity (store with moisture absorber) |
| Ugello temperature |
210 - 240°C |
| Table temperature (depending on printer and surface) |
35 - 65°C |
| Type of working surface |
Textured PEI (polyetherimide - a durable, adherent material used as a base for 3D printing) or other compatible surface |
| Printing speed |
Less than 300 mm/s |
Physical properties
| Density |
1.24 g/cm³ |
| Melting point |
165°C |
| Deflection temperature under load |
56°C |
| Softening temperature (Vicat test) |
64°C |
Mechanical properties
| Tensile strength (XY - measured in the horizontal plane of the print, where the material is strongest) |
39 ± 3 MPa |
| Elongation at break (XY) |
7,5% ± 1,3% |
| Bending strength (XY) |
78 ± 2 MPa |
| Bending modulus (XY) |
3341 ± 172 MPa |
| Impact strength (XY) |
24.7 ± 1.5 kJ/m² |
Specifiche Tecniche
| Kind |
PLA-CF |
| Download the manual |
https://files.innpro.pl/Elegoo/6932704908495 |
Informazioni Prodotto
-
Marca: ELEGOO
-
Codice modello: 50.203.0464
-
Codice EAN: 6932704908495
-
Peso: 1260 g
-
Categoria: Filamenti per Stampa 3D
