Lo Skaner 3D Revopoint Pop 3 Plus advanced di Revopoint è uno scanner 3D portatile che utilizza la tecnologia SLAM per la scansione di oggetti e ambienti in tempo reale. Ideale per rilievi architettonici, reverse engineering e documentazione 3D.

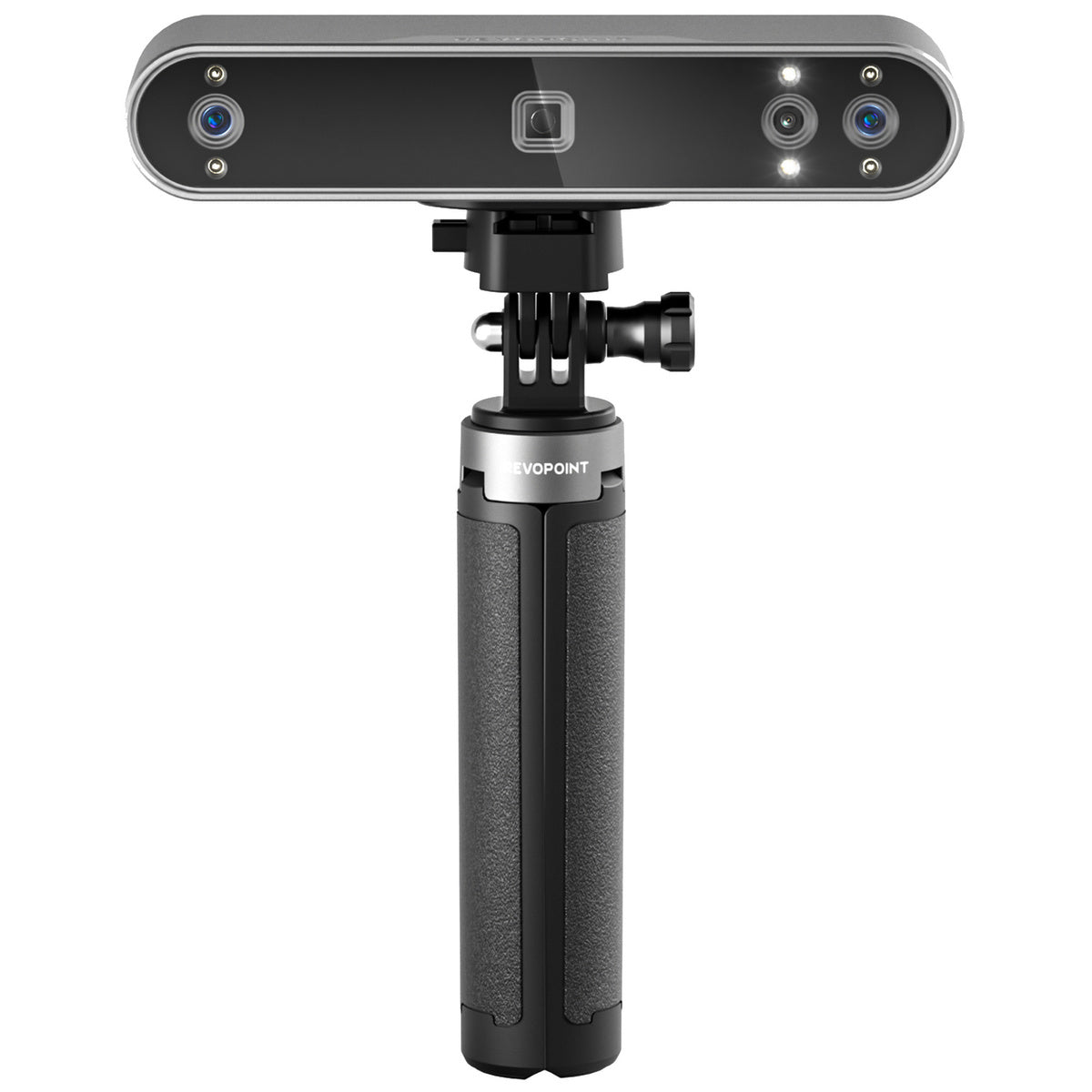

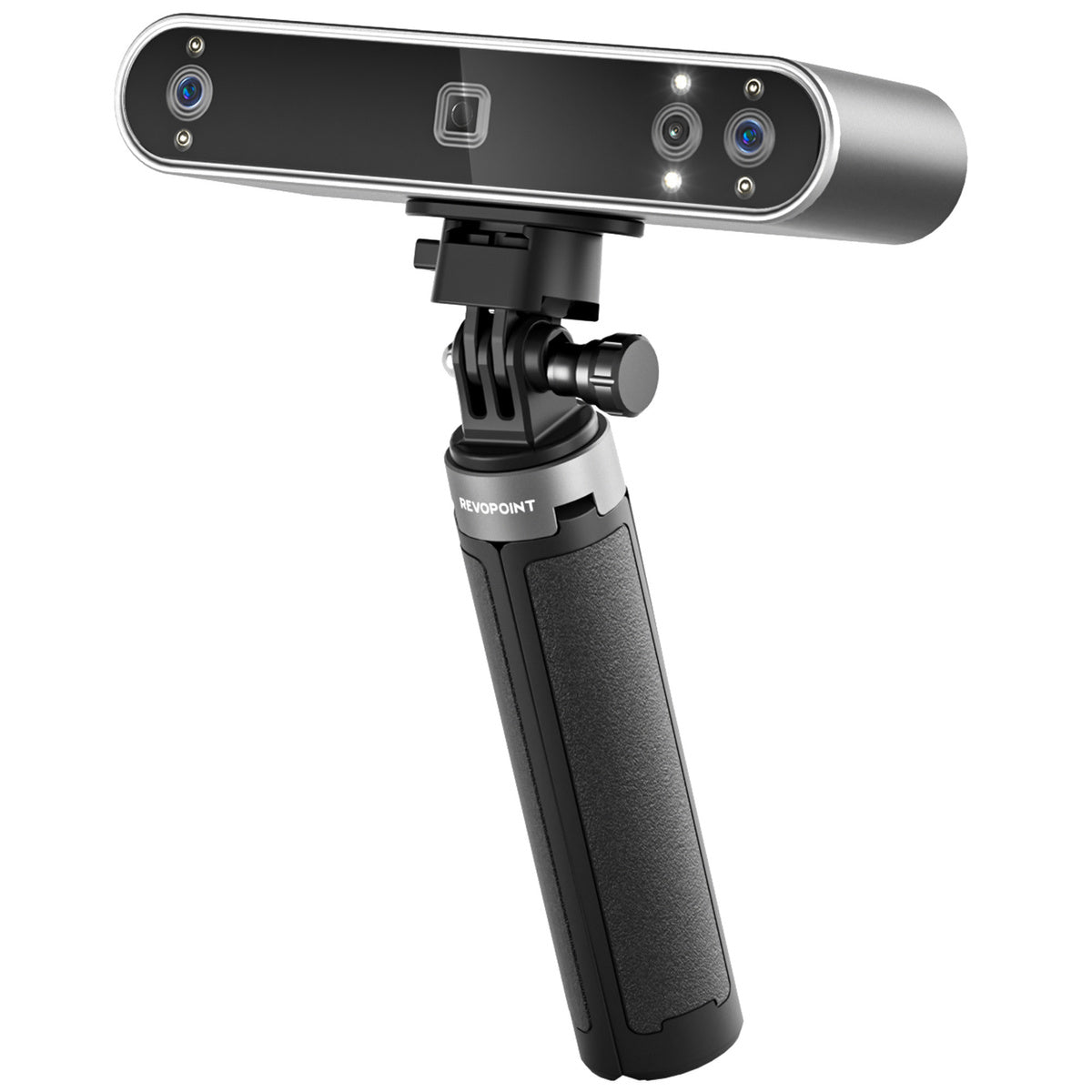

Revopoint Pop 3 Plus Advanced 3D Scanner
Discover the Revopoint POP 3 Plus—a portable 3D scanner that combines exceptional single-frame accuracy (0.08 mm), 2x optical zoom, image stabilization via a 9-axis IMU, and global marker tracking mode, ensuring flawless point cloud fusion. With a scanning speed of up to 18 frames per second and a built-in HD RGB camera, you'll get fast, full-color models, making the Pop 3 Plus model up to 20% more precise than the Pop 3 model. The scanner supports objects ranging from 20 mm to 2000 mm, and the free, cross-platform Revo Scan software allows you to export nearly all formats without the need for constant internet access. Take your projects to the next level—choose the reliability and quality that professionals expect. A two-axis turntable and powerbank are included with the Advanced version.
Exceptional precision in every detail
The Revopoint Pop 3 Plus is the latest model in the Pop series. It offers single-frame accuracy of 0.08 mm, which was previously only available on much more expensive units. The Pop 3 Plus offers as much as 20% more precision than its predecessor, which translates into even higher confidence in measurement repeatability. Whether you're digitizing a complex engine part or a richly decorated sculpture, every nuance will be rendered with the highest accuracy.
Advanced Tracking and Image Stabilization
The built-in 9-axis IMU (Inertial Measurement Unit), consisting of a gyroscope, accelerometer, and magnetometer, continuously monitors the scanner's movement. This allows the Pop 3 Plus to automatically correct minor hand tremors, eliminating the risk of blurry sections and errors in merging consecutive frames. Additionally, the global marker tracking mode significantly reduces error accumulation in the point cloud, resulting in exceptionally stable and precise data fusion.
Fast and efficient scanning
With scanning speeds of up to 18 frames per second, you can go from object setup to finished 3D model in no time. The 2x optical magnification significantly increases the sharpness of the structured light, resulting in a 30% better point cloud reproduction compared to the previous Pop 3 model, while the built-in HD RGB (Rosso, Verde, Blu, or Rosso, Verde, and Blu) camera produces realistic, full-color textures that further enhance the digital reproduction.
Versatility of applications
The range of recommended scanning volumes (from 20 × 20 × 20 mm to as much as 2,000 × 2,000 × 2,000 mm) makes the Revopoint Pop 3 Plus ideal for precision engineering, as well as art archiving or automotive prototype preparation. Whether you're working in a design office, model shop or exhibition hall, this scanner will meet your most demanding expectations.
Hassle-free operation and versatile software
Installing Revo Scan 5 is simple and intuitive. Just connect the scanner to your computer, select your device from the list, and start calibration with a few clicks, following the clear on-screen instructions. IMU calibration ensures full stabilization capabilities, and the free software runs on Windows, macOS, Android, and iOS without requiring constant internet access—an internet connection is needed only for updates and file transfers.
Full compatibility with your tools
You'll save your scanned models in PLY, OBJ, ASC, STL, FBX, GLTF and 3MF formats, guaranteeing seamless integration with the most popular CAD (Computer-Aided Design, a process that uses computer software to create, analyze, modify and document designs, typically in fields such as engineering, architecture and design), 3D printing applications or presentation platforms. This will bring digital scans into your system without any restrictions.
Contenuto della confezione in the set
- Pop 3 Plus 3D scanner

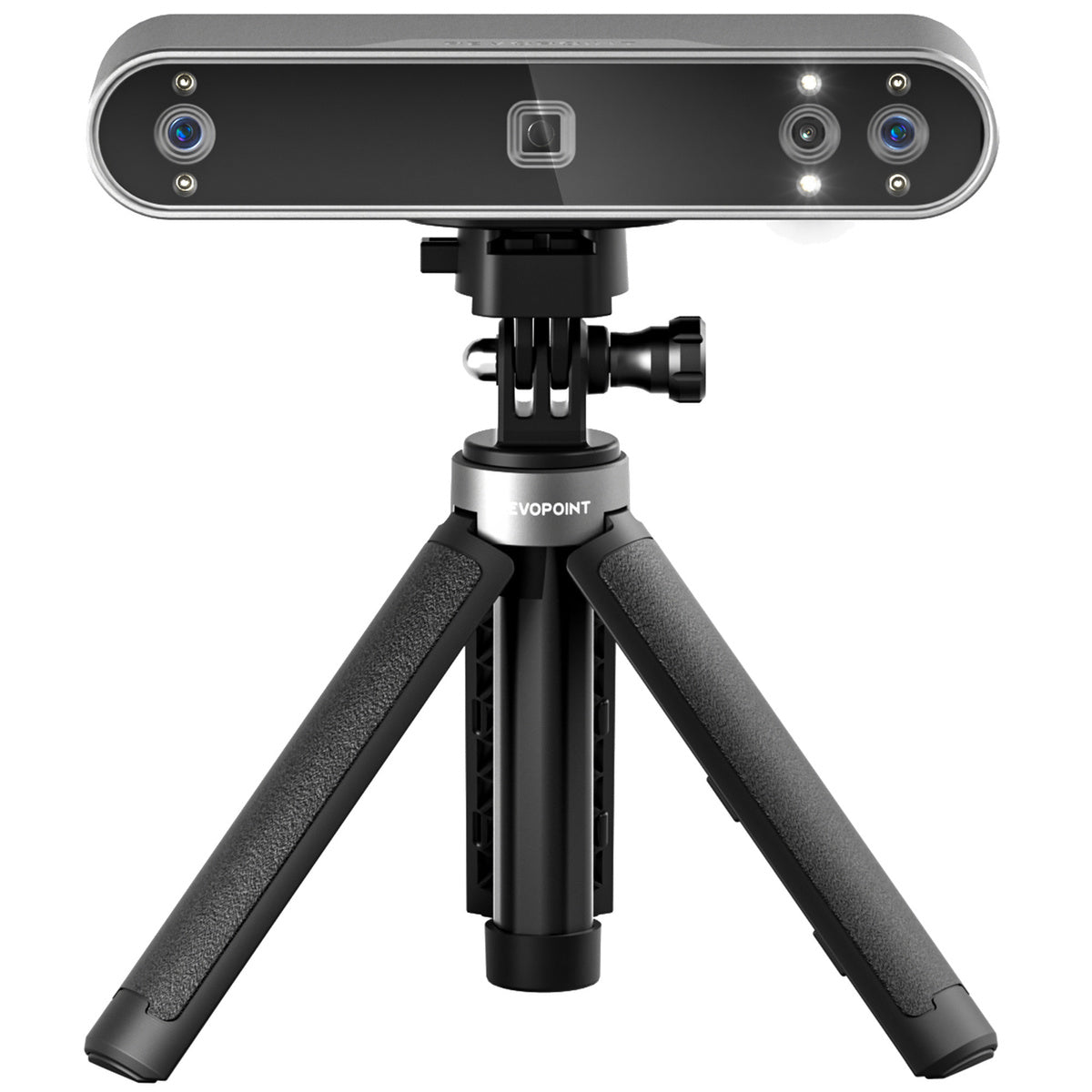

- tripod
- two-axis turntable
- charger for the two-axis turntable
- power bank
- reusable adhesive pad
- mini turntable
- turntable cover
- power cable for the turntable
- smartphone holder
- carrying case
- calibration plate
- markers
- USB Type-C to Type-A adapter
- USB Type-C to Type-A cable
- 2-in-1 cable
- bust model for scanning
- user manual
| Produttore |
Revopoint |
| Modello |
Pop 3 Plus advanced |
| Scanning type |
Manual or via desktop computer |
| Size of scanned objects |
Medium |
| Single-frame precision |
0.04 mm |
| Single-frame accuracy |
0.08 mm |
| Point of convergence distance |
0.05 mm |
| Working range |
150 ~ 400 mm |
| Single capture area at closest distance |
61 x 68 mm at 150 mm |
| Single capture area at farthest distance |
244 x 180 mm at 400 mm |
| Angular field of view (H x W) |
40 x 25° |
| Minimum scan volume |
20 x 20 x 20 mm |
| Maximum scan volume |
2 x 2 x 2 m |
| Scan speed |
18 fps |
| Fotocamera resolution |
1MP depth camera, 1MP RGB camera |
| Colore scanning |
Supported |
| Outdoor scanning |
Supported |
| 3D light source |
Class 1 infrared light |
| Infrared fill light |
Yes |
| Bianco LED light |
Yes |
| Sensors |
9-axis IMU |
| CPU |
Dual-core, 1.6 GHz |
| Built-in computing chip |
Depth map calculation |
| Internal storage |
None |
| RAM |
None |
| Touchscreen |
None |
| Buttons |
3 |
| System requirements |
macOS: RAM ≥8GB, CPU M1 Pro, M1 Max, M1 Ultra, M2, M2 Pro, M2 Max, M2 Ultra, M3, M3 Pro, M3 Max; Windows: RAM ≥16GB, CPU i5 - 12/13/14, i7 - 12/13/14, i9 - any series |
| Recommended system requirements for PC |
Intel Core i7, 16 GB RAM or better |
| Compatible operating systems |
Windows 10/11 (64-bit), Android, iOS, macOS |
| Native system |
None |
| Supported formats |
PLY, OBJ, STL, ASC, 3MF, GLTF, FB, X |
| 3D model printing capability |
Yes |
| Wi-Fi version |
6 |
| Bluetooth version |
4.1 |
| Connettore type |
USB Type-C |
| Power requirements |
DC 5V, 1A |
| Battery |
None |
| Peso |
190 g |
| Dimensioni |
153 x 45 x 29 mm |
| Scanning non-standard objects |
It is recommended to use spray for transparent, dark, or shiny objects |
Specifiche Tecniche
| Download the manual |
https://files.innpro.pl/Revopoint/6975577880673 |
| Information about data generation |
https://dataact.innpro.pl/revopoint/6975577880673 |
Informazioni Prodotto
-
Marca: Revopoint
-
Codice modello: Pop3 plus advanced
-
Codice EAN: 6975577880673
-
Peso: 3540 g
-
Categoria: Scanner 3D
